The P-90 pickup is one of the most revered and versatile single-coil pickups in electric guitar history. Introduced by Gibson in 1946, the P-90 became the standard pickup for many early electric guitars before the rise of humbuckers in the late 1950s. Known for its gritty, warm, and dynamic tone, the P-90 remains a favorite among blues, rock, jazz, and punk guitarists.
1. History and Development
Predecessor: The Charlie Christian Pickup
Before the P-90, Gibson’s primary electric pickup was the Charlie Christian pickup, a large single-coil unit used in early archtop jazz guitars. While it produced a warm, rich sound, it was bulky and complex to manufacture.
Birth of the P-90 (1946-1949)
In 1946, Gibson introduced the P-90 as a compact, high-output single-coil pickup to replace the older design. It was used in Gibson’s Les Paul models, ES-175, and other electric guitars.
The 1950s: The Golden Era of P-90s
- In 1952, the first Gibson Les Paul Goldtop was equipped with two P-90s.
- The P-90 was the primary pickup used in Gibson guitars until 1957, when Gibson introduced the PAF humbucker.
- Although humbuckers became more popular, P-90s remained in production due to their unique tone and raw character.
Later Years: Resurgence of the P-90
- By the 1970s and 1980s, many punk and alternative rock players rediscovered the aggressive yet articulate tone of the P-90.
- Modern boutique guitar builders and major brands continue to offer P-90-equipped models, recognizing their unique place in music history.
2. Design and Construction
a. Single-Coil Structure
- The P-90 is a single-coil pickup, meaning it has one coil of wire wrapped around a set of magnetic pole pieces.
- Unlike Fender-style single-coils (e.g., Stratocaster and Telecaster pickups), the P-90 has wider, shorter coils, resulting in a thicker and warmer tone.
b. Magnet Type
- Most P-90s use Alnico magnets (Alnico II, III, or V), which contribute to their smooth yet punchy response.
- Some modern versions use ceramic magnets for increased output and brightness.
c. Output and Resistance
- The P-90 generally has a higher output than Fender single-coils but lower than humbuckers.
- Typical resistance ranges from 7.5kΩ to 9.5kΩ, contributing to its fuller, midrange-focused sound.
d. Two Main Mounting Styles
- Soapbar P-90
- Rectangular shape with no visible pole screws on the top.
- Typically mounted directly to the guitar body.
- Found on Gibson Les Paul Specials, Juniors, and SG Specials.

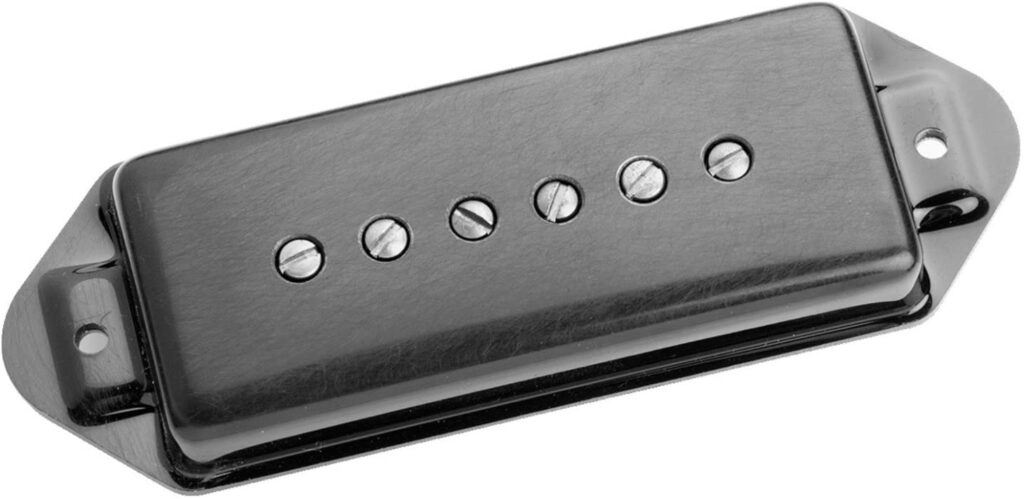

- Dogear P-90
- Similar to the Soapbar but with extended “ears” on the sides for mounting screws.
- Common in hollow-body and semi-hollow guitars like the Gibson ES-330 and Epiphone Casino.
3. Tone Characteristics
The P-90 pickup is a sonic middle ground between Fender single-coils and Gibson humbuckers. It combines the clarity and articulation of a single-coil with the warmth and punch of a humbucker.
a. Key Tonal Traits
- Thicker than Fender single-coils (more mids and bass).
- Brighter than humbuckers (more clarity and chime).
- Slightly gritty with a raw, aggressive attack.
- Highly responsive to playing dynamics and amp settings.
b. Tone in Different Positions
- Neck Position: Warm, smooth, and round – great for blues, jazz, and clean arpeggios.
- Bridge Position: Bright, punchy, and raw – ideal for rock, punk, and cutting leads.
- Middle Position (Both Pickups): Balanced, slightly scooped tone with articulate highs and warm lows.
c. Tonal Comparison with Other Pickups
| Feature | P-90 | Fender Single-Coil (Strat/Tele) | Humbucker (PAF) |
|---|---|---|---|
| Output | Medium | Low | High |
| Tone | Thick, warm, slightly raw | Bright, chime-like | Smooth, fat |
| Clarity | High, but with midrange punch | Very high, scooped mids | Mellow, less articulate |
| Sustain | Moderate | Low | High |
| Noise | Prone to hum (like all single-coils) | Prone to hum | No hum (humbucking) |
4. Famous P-90 Users and Guitars
a. Iconic P-90 Players
- Les Paul – Used P-90s on his early Les Paul Goldtop models.
- Pete Townshend (The Who) – Famous for smashing Gibson SG Specials with P-90s on stage.
- Carlos Santana – Early recordings featured a P-90-equipped Gibson SG Special.
- Johnny Thunders (New York Dolls, Heartbreakers) – Relied on a Gibson Les Paul Junior with a single P-90.
- George Harrison (The Beatles) – Used an Epiphone Casino (P-90s) on Revolver and Sgt. Pepper albums.
- Billie Joe Armstrong (Green Day) – Plays a Les Paul Junior with a single P-90, contributing to his raw punk tone.
b. Guitars Equipped with P-90s
- Gibson Les Paul Special – A double-cutaway, stripped-down Les Paul with two P-90s.
- Gibson Les Paul Junior – A single-pickup Les Paul with a raw, aggressive tone.
- Gibson SG Special – Lightweight, fast-playing guitar with P-90s for an edgier tone.
- Epiphone Casino – A fully hollow-body guitar known for its rich, open P-90 tone.
- Gibson ES-330 – Similar to the Casino, a hollow-body guitar used for blues and jazz.
5. Strengths and Weaknesses of P-90 Pickups
✅ Pros:
✔ Warm yet articulate tone – Works across multiple genres.
✔ Higher output than Fender single-coils – Cuts through the mix better.
✔ Great dynamic response – Sensitive to picking technique.
✔ Perfect for vintage blues, rock, and punk tones.
❌ Cons:
❌ Prone to 60-cycle hum – Like all single-coils, they can be noisy in high-gain settings.
❌ Limited high-gain performance – More susceptible to feedback compared to humbuckers.
❌ Less common in modern guitars – Most mass-market models come with humbuckers or standard single-coils.
